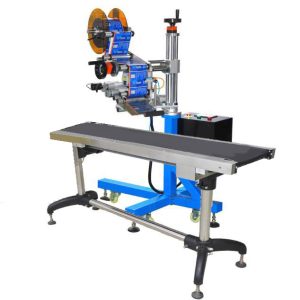

LAB510 HIGH SPEED LABEL APPLICATOR

Multi-Purpose Universal labeler, automatic feeder, flap folder and tabber

REQUEST A QUOTE

Product Features:

  • NEW Design featuring larger sizes
  • Universal Labeler
  • Over 7000 labels per hour

Suitable for labeling Ziploc and self-sealing bags and pouches, poly and paper bags, credit cards, phone cards, gift cards, scratch-offs, sleeves, envelopes, small boxes, CD DVD BD cases and more!

  • Applies security tabs around jewel cases and sleeves
  • Table-top unit
  • Fully transportable

Suitable for any product with a flat surface to a maximum height of 2” (50mm) and width of 12.4” (310mm), and length of 450mm (17.7”)

  • Labels can be in either fanfold or reel format.
  • Paper or plastic labels or tabs with clear or solid backgrounds

The new LAB510 can now label at 4,300 pieces per hour to any product with a flat surface to a maximum height of 2” (50mm), the width of 12.4” (315mm). and length of 17.7” (450mm). Plus at your request, we can customize the LAB510 to any size requirement!

The LAB510 can be used as a standalone unit or incorporated in a production conveyor line. Multiple units can be placed in line to form a complete tabbing, labeling, and barcoding system.

Labeling

The LAB510 can apply all types of labels, stick-on’s, scratch-offs, promotional, or bar code labels to any package.
The versatile LAB510 can use paper or plastic labels or tabs with clear or solid backgrounds.

Automatic feeding (FF510)

The FF510 hopper will dispense paper, carton, plastic and Tyvek sleeves, Polybags, Ziploc bags, Jewel CD-Cases, DVD and Game Boxes, phone, or credit cards and any other flat objects. The hopper automatically dispenses the products onto the conveyor belt where the product is labeled. The hopper can be refilled while the unit is running.

Flap folding (option FF500)

In addition to the automatic dispensing of cases and sleeves as outlined above, the optional FF500 also acts as an automatic flap folder, folding down the flaps of paper and Tyvek CD sleeves and other envelopes as they pass from the hopper onto the LAB510’s conveyor belt. Even the most basic of sleeves can be folded and then secured with the addition of a label tab.

Tabber (option TT500)

The TT500 tabber option allows the LAB510 to apply and fold sealing tabs/labels round the edge of cases and cartons and open ends of cardboard sleeves. The tabs/labels can be paper or plastic, clear or solid.

ACCESSORIES AND OPTIONS

PRODUCT OPTIONS No
LAB510-S-2020-1

FEATURES AND SPECIFICATIONS

An automatic label applicator including small objects like SD cards, CF cards or USB’s:

The LAB510  Universal Labeler will apply labels to a wide variety of products at up to 7,000 pieces per hour! The new LAB510 can now label large pouches and plastic bags, gift cards, phone cards, credit cards. scratch off’s, envelopes, sleeves, CD mailers, audio cassettes, in fact, any product with a flat surface to a maximum height of 2” (50mm), the width of 12” (304mm). and any length.

Labels can be in either fanfold or reel format. The LAB500 can be used as a standalone unit or incorporated in a production conveyor line. Multiple units can be placed in line to form a complete tabbing, labeling, and barcoding system.

The LAB510 can apply the product, stick-on’s,  scratch-offs, promotional or bar code labels to any size of package up to 2” (50mm) high, 12” (304mm) wide and any length. The versatile LAB510/600 can use paper or plastic labels or tabs with clear or solid backgrounds.

In addition, we can modify the LAB510 to any size requirement!

Specification
Operational Voltage:
110/220 VAC 50/60Hz
(self-adjusting)
Power Consumption:
100w
Dimensions (WxHxD):
21.6” x 20.5” x 29.7”
540mm x 520mm x 755mm
Weight:
57lbs (26kg)
Throughput
4000-4200 per hour
Maximum Packaging Dimensions :
Length: No Limit
Height: 2” (50mm)
Width: 12” (304mm)
Label Specifications
Roll:
Up to 9.8”
250mm
Fan Fold:
1.6” x 3”
40 x 76mm with adaptor
Label Dimensions:
0.6” – 5.4″
15mm -136mm
FF500 – Hopper Module and Automatic flap folder feeding option
Product Features:
  • Increased Capacity
  • Table-top unit
  • Fully transportable



The FF500 hopper is an optional extra for the LAB510 disc labeler and will dispense paper, plastic and Tyvek sleeves, Jewel CD-Cases, CD-Slim-line cases, DVD-cases, and other flat objects. The hopper holds paper sleeves or jewel cases and can be refilled while the unit is running. The optional FF500 also acts as an automatic flap folder, folding down the flaps of paper and Tyvek CD sleeves and other envelopes as they pass from the hopper onto the LAB510/600’s conveyor belt. Even the most basic of sleeves can be folded and then secured with the addition of a label tab.

Specification
Power:
None required
Capacity:
280 Sleeves or 60 Jewel Cases



FF500SF – Streamfeeder Hopper Module



Product Features:
  • Increased Capacity
  • Extra thin bags
  • High Speed
  • Fully transportable

The Streamfeeder Reliant 1500 Inserter Feeder combines flexible performance with superior feeding capabilities to precisely separate, singulate, and present many types of product types and sizes to the
gripper jaw of swing arm inserters at extreme speeds. Job setups and changeovers are easily and quickly accomplished via toolless adjust features. A large capacity hopper is designed to be loaded from the front or rear of the machine maximizing operator efficiency. The brushless and clutch free motor provides long, dependable performance and the feeder is backed by a two-year limited warranty.
Supports a wide variety of flat and multi-thickness products.

Specification
Power:
115/230 VAC 50/60Hz, 1A
(self-adjusting)
Maximum Product Size
9.25 W x 6 L in (235 x 152 mm)

TT500 – Label Tabber

Product Features:
  • Compatible with LAB510 Universal Labeller
  • Folds Flaps on disc sleeves
  • Applies tab labels for secure fastening of cases and sleeves
  • Over 4000 labels per hour
  • Suitable for Labeling Jewel Cases, DVD Cases, Audio Cassettes, VHS Cassettes, CD Sleeves
  • Table-top unit
  • Fully transportable



The TT500 Label Tabber is an optional extra for the LAB510 Universal Labeller which automatically folds the flaps of paper and Tyvek CD sleeves and will also add a label tab to fasten down the flap. The TT500 will also fold sealing tabs/labels round the edge of CD jewel cases and open ends of cardboard sleeves. The tabs/labels can be paper or plastic, clear or solid.

Specification
Power:

None required

Dimensions (WxHxD):
220mm x 80mm x 250mm
8.6″ x 3.1″ x 9.8″
Weight:
2kg (4lbs)
Throughput:
4000-4200 per hour
Maximum Packaging Dimensions:
Length: No Limit
Height: 50mm (2”)
Width: 210mm (8.3”)
